Precision Spiral Bevel Gear Set: Engineered for Optimal Power Transmission

Spiral Bevel Gear Set – High Precision Right Angle Transmission Solution

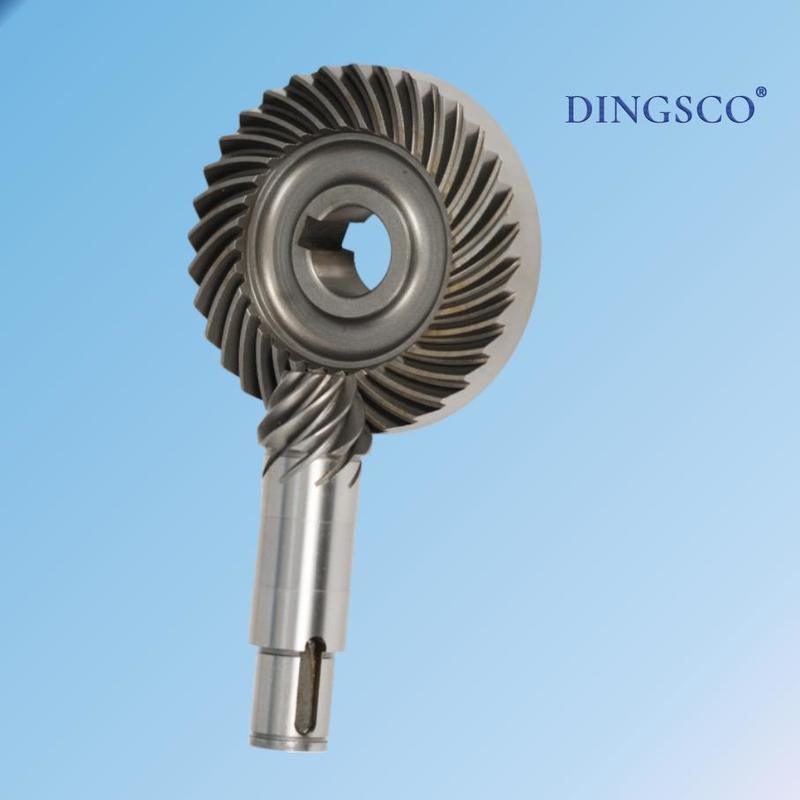

The spiral bevel gear set represents the pinnacle of precision engineering in power transmission components. Comprising a spiral bevel gear and a pinion shaft, this assembly is designed to deliver smooth, efficient torque transfer at 90° angles, making it indispensable for applications demanding high accuracy, low noise, and robust durability.

Technical Excellence

• Design & Geometry: The spiral teeth feature a curved profile that meshes gradually, reducing impact loads and minimizing operational noise. This spiral design also enables higher load-carrying capacity compared to straight-bevel alternatives.
• Material & Hardness: Fabricated from premium alloy steel, the gears undergo precision heat treatment (e.g., carburizing, quenching) to achieve a surface hardness of HRC 58–62, ensuring exceptional wear resistance and fatigue strength.
• Manufacturing Precision: Employing advanced CNC gear cutting and grinding technologies, the gear set meets AGMA Class 10–12 standards for tooth profile, pitch, and surface finish, guaranteeing seamless meshing and long-term reliability.

Application

1. Automotive: Differential drives, power steering systems, and specialty vehicle transmissions.
2. Aerospace & Defense: Actuation systems, rotorcraft components, and mission-critical machinery.
3. Industrial Equipment: Robotics, CNC machines, packaging systems, and heavy-duty conveyors.
4. Marine & Offshore: Propulsion systems, winches, and offshore drilling equipment.


Key Specifications
