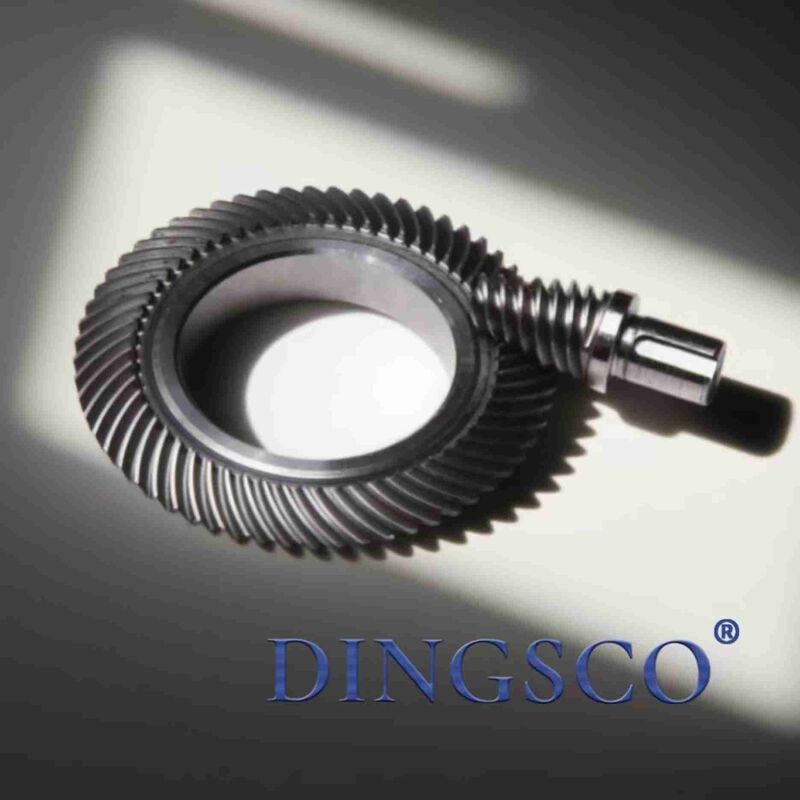

High Reduction Ratio Hypoid Gear For Reduction Gear Technology Transmission Ratios Manufacturing

What are the characteristics of High reduction ratio hypoid gear?

High reduction ratio hypoid gears are specialized precision transmission components built specifically for high torque, low-speed applications. They’re engineered to deliver top performance with high efficiency, impressive load-bearing capacity, and a compact, space-saving structure. You’ll find these gears hard at work in heavy machinery, industrial equipment, new energy vehicles, and many other demanding settings—where reliability and power matter most.

Why Choose Hypoid Gears?

These gear systems are designed to tackle heavy loads effortlessly, thanks to their smart stress distribution across the tooth surfaces. Whether you need to move massive machinery or power robust equipment, they’re up to the challenge with their high load-bearing capacity. And here’s a big win: they offer transmission efficiency of over 90%. That means less energy wasted and lower operational costs for you—saving money while keeping your operations running smoothly.

Flexibility is another key benefit. With a wide range of transmission ratios (from 5:1 all the way up to 100:1), these gears can adapt to just about any deceleration need you might have. No matter how specific your application, there’s a ratio that fits.

But wait, there’s more! Their compact design is a game-changer. Even in tight, cramped spaces, these gears deliver powerful torque output. Perfect for equipment where every inch counts—you get maximum performance without sacrificing valuable space. It’s like having a powerhouse in a small package.

What Sets Them Apart from Traditional Gears?

Hypoid gears have a unique design that gives them an edge over standard spur or helical gears. Unlike those, their axes aren’t parallel or intersecting—they’re actually offset from each other. This clever setup increases the contact area between the teeth, so they can handle heavier loads with less strain. Plus, the smaller pinion gears have a larger helical angle than the bigger gears. This not only boosts transmission efficiency but also cuts down on noise and vibration, making operation quieter and smoother.

Another cool feature? Point meshing. As the gears rotate, contact points glide smoothly along the tooth surface, ensuring a constant transmission ratio. This steady performance enhances efficiency even further and keeps noise levels low. So whether you’re working in a factory, on a construction site, or building the next generation of electric vehicles, hypoid gears bring together strength, efficiency, and versatility to help you get the job done right.

Ready to upgrade your transmission system? Hypoid gears combine all these standout features to deliver reliable, efficient, and cost-effective performance. Make the switch today and experience the difference for yourself!

Why choose us?

Back in 1994, we opened our doors to our very first customers, and ever since, we’ve been leading the charge in designing and crafting top-notch internal bevel gears and custom gear solutions. That’s a full three decades of hands-on experience—and trust us, that experience really shows in every product we create. Each gear we build isn’t just another mechanical part; it’s a testament to our unwavering commitment to doing things the right way. For us, quality isn’t something we aim for someday—it’s the cornerstone of everything we do. We never settle for “good enough.” Instead, we adhere to strict ISO 4-6 standards, so every single gear we produce meets the highest quality benchmarks in the industry. When you choose our gears, you’re getting reliability you can count on, built to last no matter how tough or demanding your project might be. These aren’t generic, off-the-shelf gears; they’re engineered from the ground up to be incredibly durable, making them perfect for even the most challenging industrial jobs you can imagine.

But what really makes us stand out is our incredible team of experts. We’re proud to have a doctoral graduate, a respected member of the China Gear Standardization Technical Committee, and a postgraduate researcher specializing in bevel gear technology right here on our staff. This unique mix of deep academic expertise and real-world experience fuels our passion for constant innovation. It helps us not only stay ahead of the latest industry trends but also play a role in shaping new standards for excellence in gear manufacturing.

Now, let’s dive into how we make these gears—we never take shortcuts, no ifs, ands, or buts. Our cutting-edge facility is packed with the latest technology, including advanced CNC seven-axis, five-linkage spiral bevel gear grinders and milling machines, plus a full range of modern manufacturing tools and precision testing equipment. Every step of the process, from that first design sketch all the way to the final quality check, is closely monitored to ensure we deliver nothing but the best. We don’t just meet high standards for quality and efficiency—we surpass them. We’re confident that our premium, custom-made gear solutions will perform flawlessly, keep you satisfied, and exceed your expectations, time and time again.

Ready to see what 30 years of expertise and innovation can do for your business? Let’s connect today and start building something extraordinary together!
